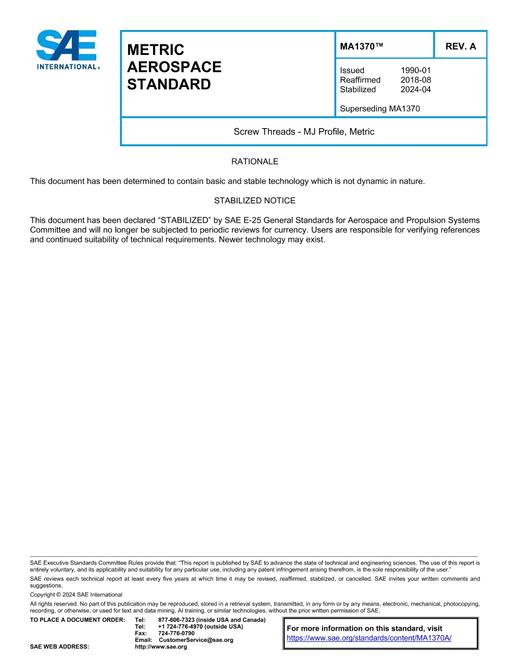

SAE MA1370A PDF
This standard specifies the characteristics of the MJ profile metric series of screw threads, altered from ISO 68 M Profile, to include a mandatory controlled radius of 0.18042P to 0.15011P at the root of the external thread and with the minor diameter of both external and internal threads increased to provide a basic thread height of 0.5625H in order to accommodate the external thread maximum root radius. The following detailed requirements are included:
- MJ basic profile and design profiles
- Standard series of diameter-pitch combinations for nominal thread diameters from 1.6 to 200 mm
- Standard thread classes and form tolerances
- Formulae for thread dimensions and tolerances
- Method of designating MJ threads
- Inspection requirement
- Tables for selected diameter-pitch combinations for aerospace screws, bolts, nuts, shaft and bearing retaining screw threads, and fluid fittings thread sizes
- Tables for MJ screw threads limiting dimensions and tolerances
- Symbols for MJ thread dimensions and tolerances
